Select a model to find the right guide and question and answer.

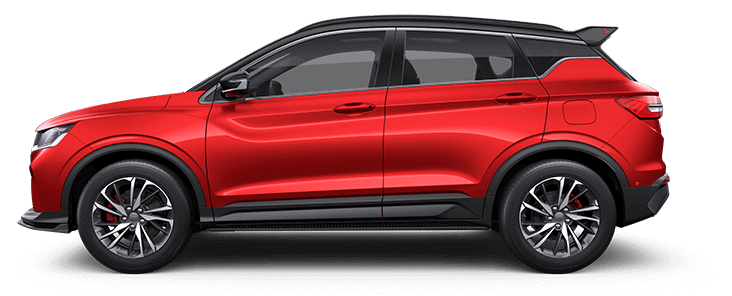

COOLRAY

Lost maintenance manual and service book. Can I buy new ones?
The operating manual can be purchased at any official Geely dealership. The lost service book can be restored by contacting the official Geely dealership, providing the following documents: an application for the restoration of the service book, a certificate of registration and a common-civilian passport. Taking into account that in order to restore the stamps on the passage of periodic maintenance it is necessary to contact the center that carried out these works. We recommend to restore the service book to contact the dealer from whom you are served.
I want to buy a set of winter tires on discs. Where can I find out the sizes of disks and rubber I need? Will I be removed from warranty if I purchase non-original Discs?
The rubber sizes approved by Geely are listed in the "Technical Characteristics" section of the manual for the operation of your car. The manufacturer recommends replacing the wheels with the official Geely dealer. Installation on the car discs and rubber not the appropriate size can lead to tire wear, have a negative impact on the handling and condition of the suspension of the car. The malfunctions caused by the operation of the car with incorrect wheel size (discs and rubber) are not warranty.
Fuel consumption does not always correspond accurately to the data in the manual. I went to the service station, but there was no fault. What could this have to do with?
Fuel consumption data are determined by the manufacturer, subject to the conditions set by the EU Directive 80/1268 (editorial 93/116/EES). These data are determined in bench tests in laboratory conditions, which differ significantly from the actual operating conditions.
In the real operation of the car by the consumer, the fuel consumption is affected by the following factors:
  • Use of air conditioning
  • Tyre pressure (low pressure increases consumption)
  • Car loading (the more loaded the car, the greater the expense)
  • Driving style (sports riding style increases consumption)
  • Road and weather conditions (bumpy road, dirt, slush, snow porridge increase consumption)
  • Long-lasting traffic at speeds of more than 110 km/h
Do I need to roll around the new Geely car? If so, how?
To ensure the use of moving engine parts, increase their lifespan, improve engine performance and improve efficiency, we recommend rolling a new car. Conditions:
  • The roll-out takes place during the first 1000 km of the run
  • Before travelling, check the oil levels in the engine, coolant and fuel
  • Do not allow a sharp acceleration, touching from the place with the fully pressed accelerator pedal
  • Engine speeds should not exceed 3,000 rpm
  • Avoid sharp braking and accelerations during the first 300 km of mileage
  • Switch gears in time to avoid engine overload (do not allow movement at too low engine speeds)
  • Once the roll-up has been completed, provide your car for periodic TO.
How best to prepare the car for winter, so as not to experience problems with operation in the cold season?
We recommend before the winter season:

  • To replace motor oil with winter oil, we recommend motor oils according to the Classification of API SG and with viscosity-temperature characteristics classification by SAE:
  • 5W-30 (winter oil),
  • 5W-40 (all-season oil),
  • 10W-30 and 10W-40 (all-season oils for regions with winter temperatures of no less than -25 degrees Celsius)
  • Fully charge the battery (charging current from 2A to 5A)
  • Check the state of the ignition candles
  • Check the freezing temperature of the coolant.
  • Pour the non-freezing liquid into the windshield washer tank
  • Check the state of the wiper brushes, if necessary to replace it with new
  • Install winter tires
  • Check the condition of the car's paint coating. If there are chipped or other damage to make repairs before the onset of cold weather.
  • In winter:
  • Use only high-quality winter fuel
  • Without the need to leave the car in a long parking lot with the raised lever "parking brake" to exclude the example of brake pads to the brake drums. For parking in winter, turn on the first or rear transmission for cars with mechanical checkpoints (except for cars that have an auto-start alarm) or transfer the selector to the "R" position for cars with automatic checkpoints
  • Periodically treat the larvae of door locks with de-icing liquid
  • Treat the sealing gum doors with silicone-based lubricant
  • It is useful to have a scraper and a brush to clean the car from snow and ice
Should the Geely car purchased from an official dealer be serviced only at the car dealer's service center?

The car purchased from an official dealer can be serviced at any official Geely dealership.

How to properly care for paint coating, so that it lasts for many years?
To preserve the paint coating is recommended:
  • Wash your car regularly.
  • t is preferable to use a manual or contactless washing..
  • It is not recommended to wash the car after a long parking in the sun.
  • Use autocosmetics containing wax (polyroli). Wax coating helps prevent dirt and reagents used to process the roadway from sticking to paint..
  • If possible, immediately after detection to remove - resin trees, traces of insects, bird droppings, chemical-active and technical substances.
  • As soon as possible repairs paint coating in case of damage (chipped, scratches, etc.)
Where can I see a list of accessories that I can order yourself? Prices and order times.

The range, cost and timing of delivery of accessories and additional equipment you can find out in the spare parts department from official Geely dealers.
